Ganged Wire-Cut Die Insert Bar with Seventeen Positions

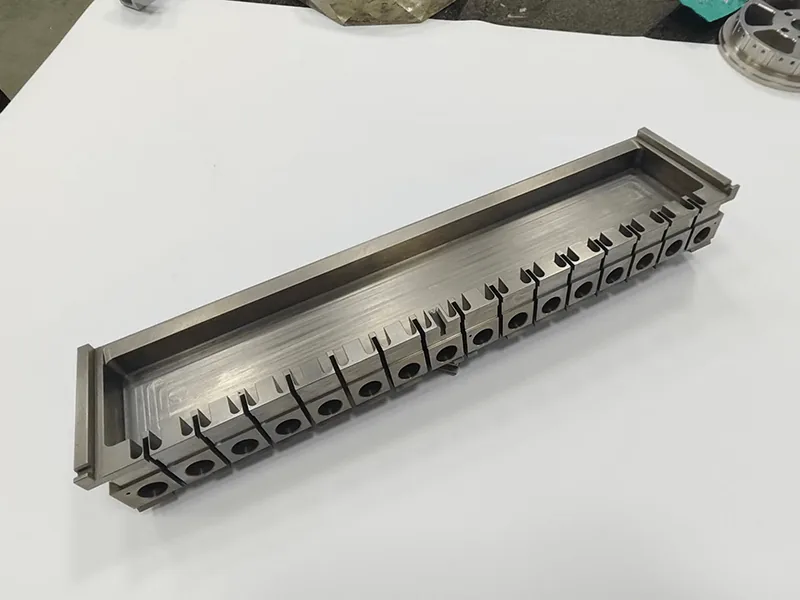

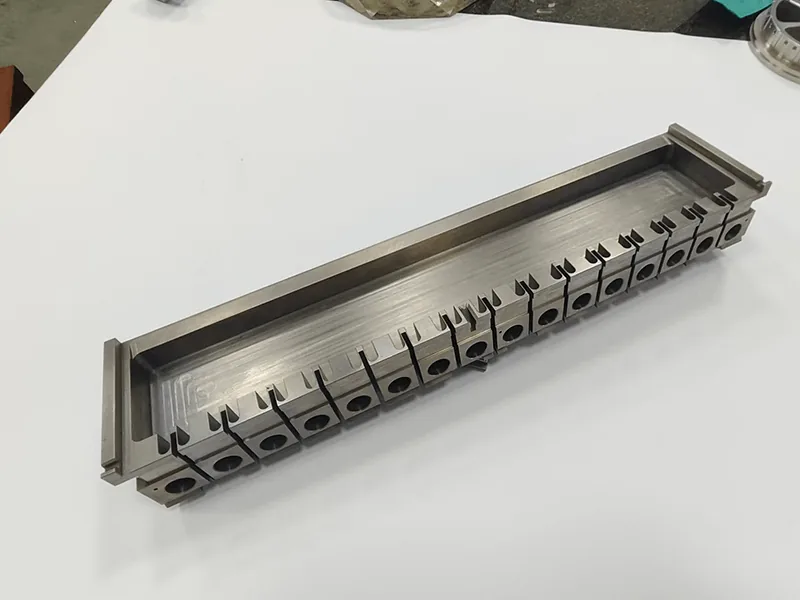

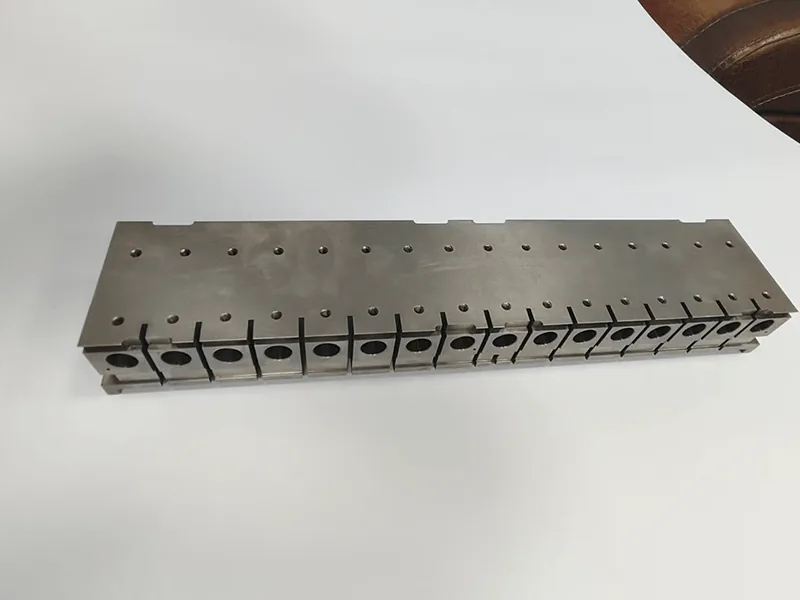

A long die holder carrying a row of seventeen identical wire-cut inserts, each with a bore and a profiled tip, seated in a milled channel. The holder is milled; the insert profiles are cut by wire EDM so that every position has the same geometry and the same corner radius.

The controlling dimension is the accumulated pitch across the full row. Each insert is measured individually, and the assembled row is measured end to end, because an error that is small on one position becomes a misfeed at the seventeenth. Where the inserts are hardened, the profile is cut after heat treatment so the finished feature does not carry the distortion of the furnace.

Send the strip layout and the material condition; both change the process route and the price.
