Robot End-of-Arm Transfer Gripper Assembly with Urethane Contact Pads
A complete end-of-arm tool: a pocketed base plate, an anodized aluminum manifold, stainless guide rails and paired finger blades, with urethane pads where the product is touched. Machined, anodized and assembled as one deliverable.
Material
Aluminum 6061-T6
Tolerance
±0.02 mm on pad and finger positions
Process
CNC Milling
What This Part Does And What Matters On It
The function of the part, the features that carry the fit, and the requirements that decided how it was machined and checked.
A complete robot end-of-arm tool supplied as one deliverable: a pocketed base plate, an anodized aluminum manifold block, stainless guide rails with paired finger blades, and urethane contact pads where the product is touched. The plate is milled with the pockets and the mounting pattern, the manifold and fingers are made separately, and the whole tool is assembled and checked before it ships.
The dimensions that matter are the positions of the pads and fingers relative to the plate's mounting pattern, because that is what the robot repeats every cycle. Fit features that are anodized are machined to a pre-coating size so they are still in tolerance after coating.
Send the robot flange pattern, the product the tool has to pick, and the cycle rate; mass and where it sits decide the plate as much as the part shape does.
The Numbers That Control This Part
Process, material, finish, and the tolerances that were held. Send your own drawing and Owen quotes against the same list.
- Machining Process
- CNC Milling
- Part Type
- Fixture, Plate
- Material
- Aluminum
- Material Grade
- 6061-T6
- Surface Finish
- Anodizing, As Machined
- Critical Tolerance
- ±0.02 mm on pad and finger positions
- Industry
- Electronics & Robotics, Industrial Automation
- Application
- Robot end-of-arm tool for pick-and-place transfer
- Position of pads and fingers
- ±0.02 mm
- Dowel hole fit
- H7
- Anodizing
- Black, 10–15 µm
- Surface roughness
- Ra 1.6
Have A Part Like This On Your Drawing?
Send the drawing with the material, quantity, and the tolerances your inspection actually checks. Owen reviews it against how this part was run and comes back within 24 hours on business days with a price, a lead time, and DFM notes before you commit to anything.
How This Part Was Machined
Base plate pockets and the mounting pattern are milled in one setup. Fit features are machined to a pre-anodizing size, and the fingers, manifold and pads are assembled and checked as one tool before shipping.
How This Part Was Checked
Pad and finger positions relative to the plate mounting pattern, measured after assembly; anodized fit features checked after coating.
Pad and finger positions from the mounting datum, after assembly
Dowel holes and fit features after anodizing
Every Quote Comes With DFM Notes
Owen reads the drawing before pricing it: tolerances that add cost, features that need a second setup, finishes that change lead time. Send a STEP or PDF with the material and quantity, and the quote reflects what is actually machinable, within 24 hours on business days.

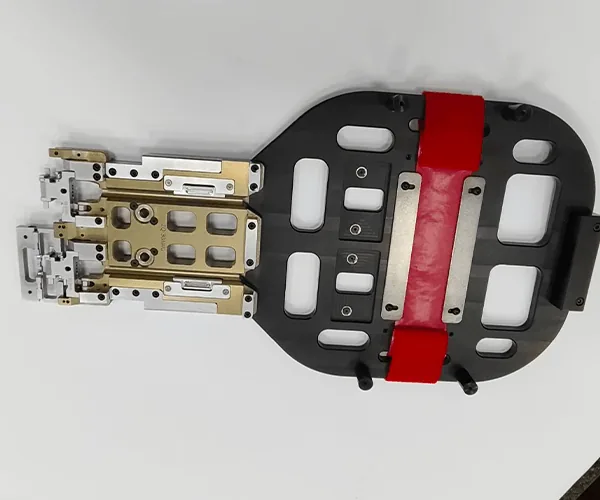

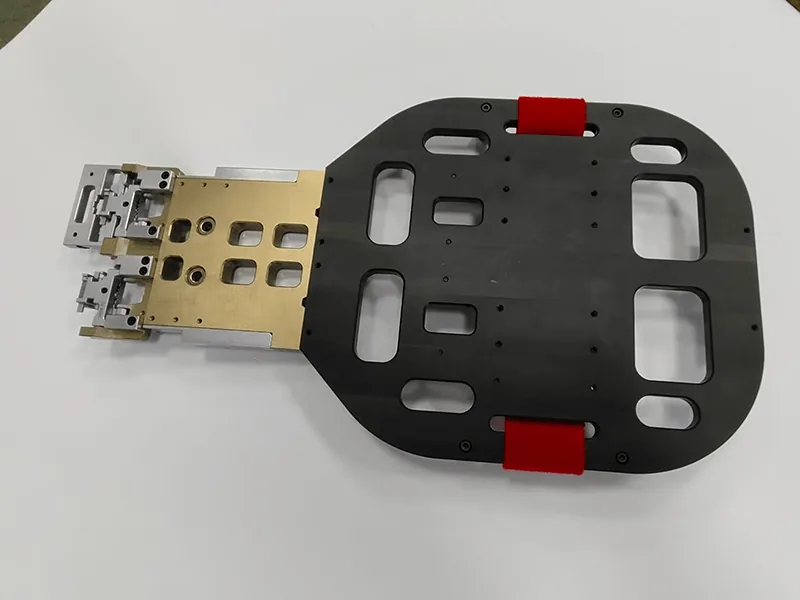

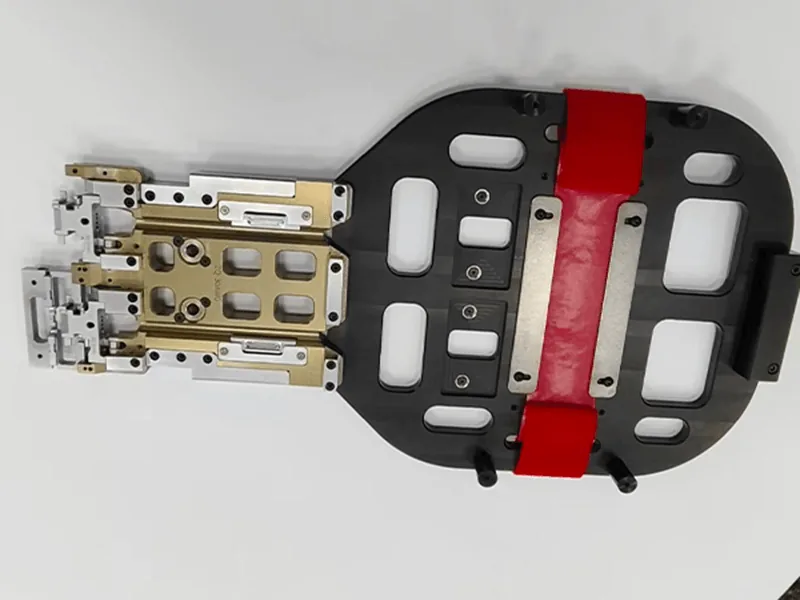

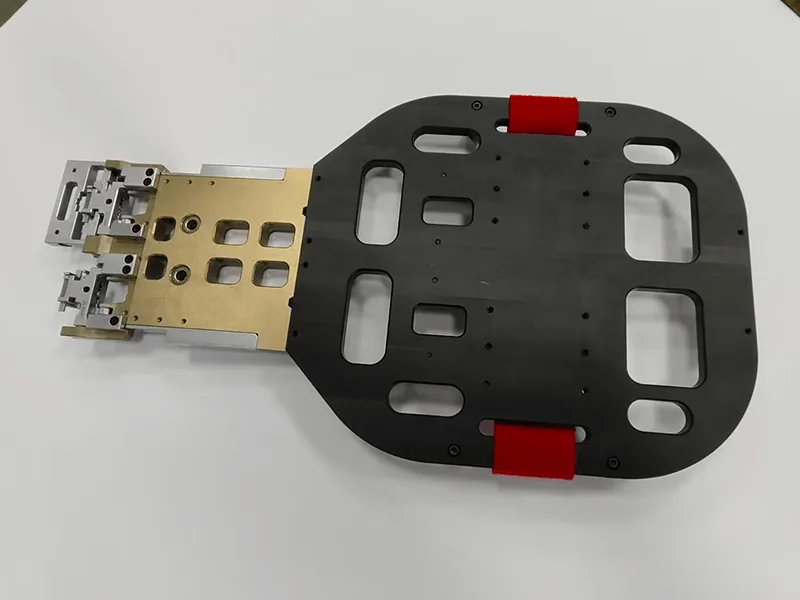

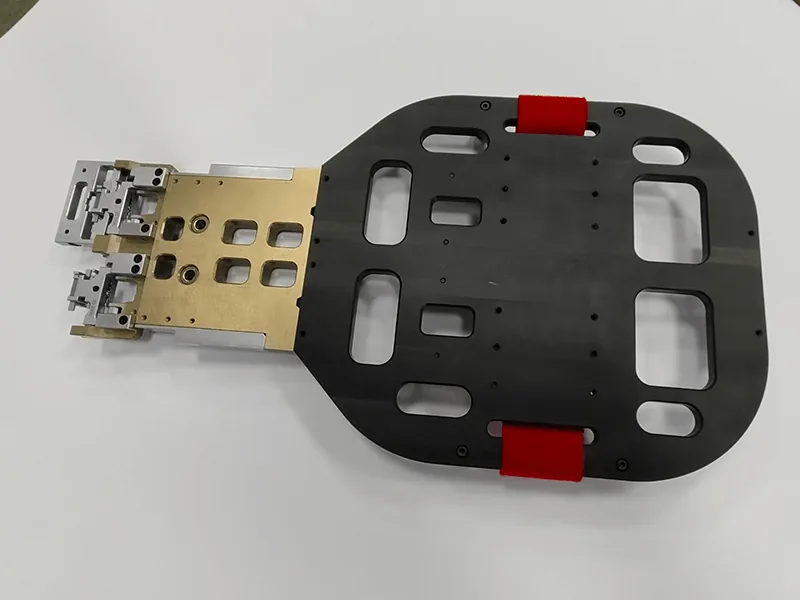

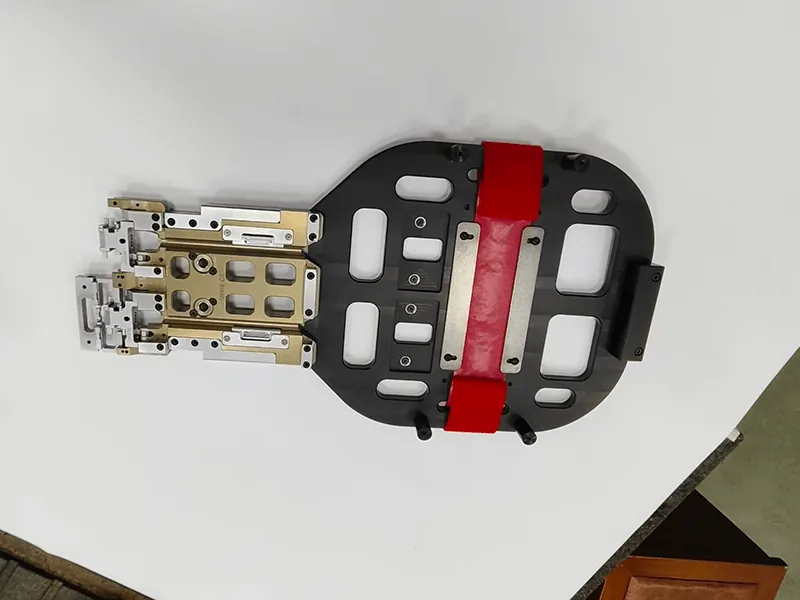

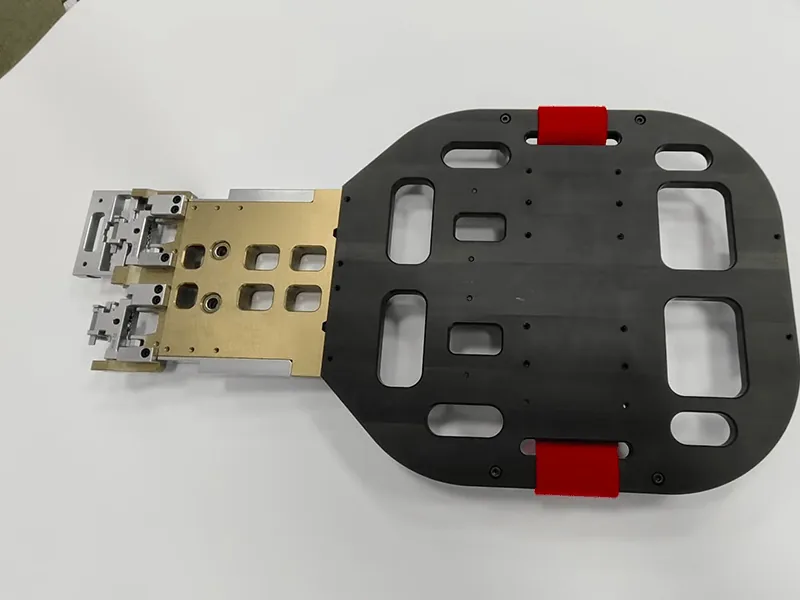

More Photographs Of The Finished Part
Surfaces, edges, and features after machining and finishing. Click any image to open it at full size.
