Wire-Cut Blade Insert Set for Connector Stamping Tooling

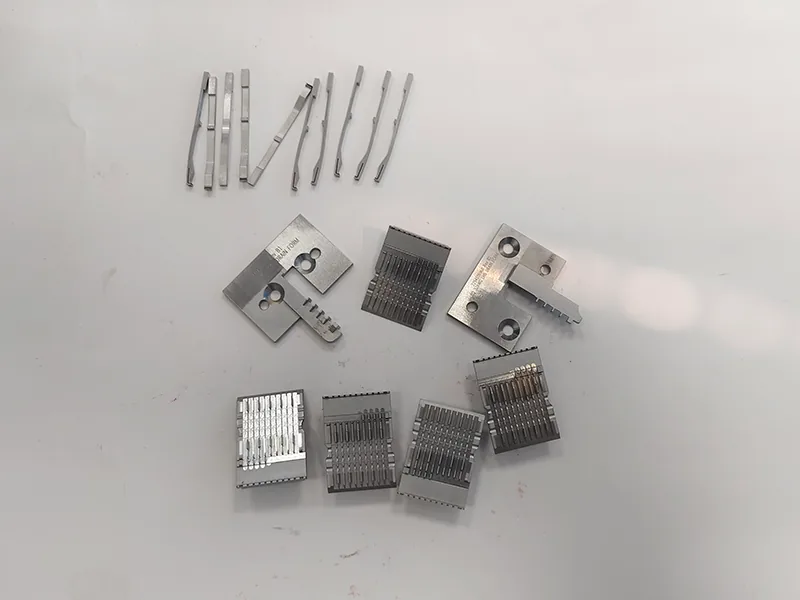

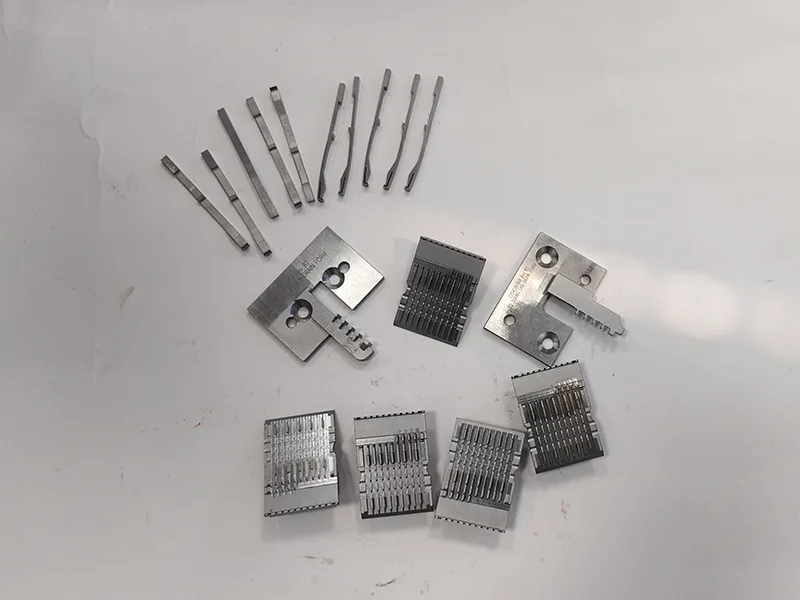

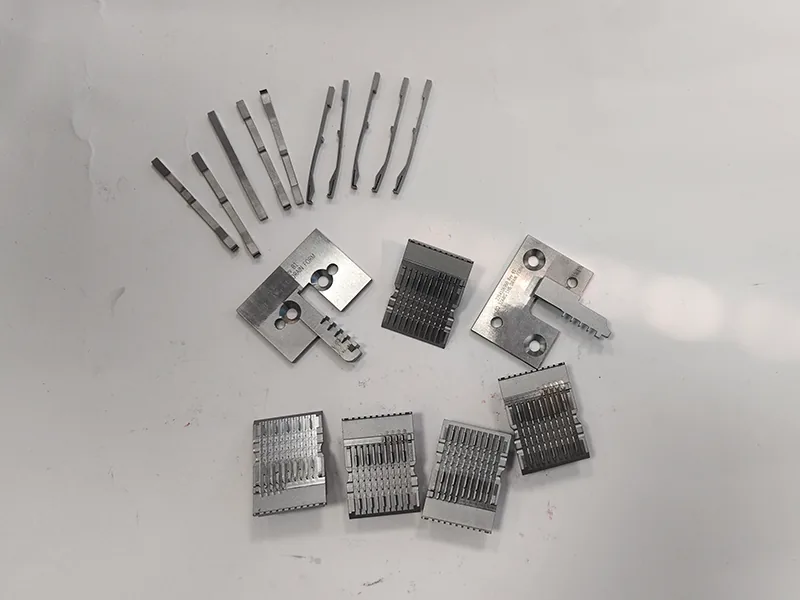

A set of stamping tooling inserts: stacked blade packs cut on a fixed pitch, formed contact blades, and marked locating plates. The slot widths on the blade packs are below what a milling cutter can enter, so the blanks are milled to size and the profiles are wire cut.

What matters on this set is the pitch across each pack, the blade thickness, and the position of the profiles relative to the datum edges the parts locate on in the die. Slot widths are checked with pin gauges and the packs are measured optically before the set is released.

If the inserts replace tooling already in a press, send the last inspection report you accepted along with the drawing; it tells us where the previous set actually landed inside the tolerance band.
